Frame anchor 75x125 (Heavy)

Regular price €1,81
Sale price €1,81 Regular price
Tax included.
Delivery time: 2-3 working days
Product description

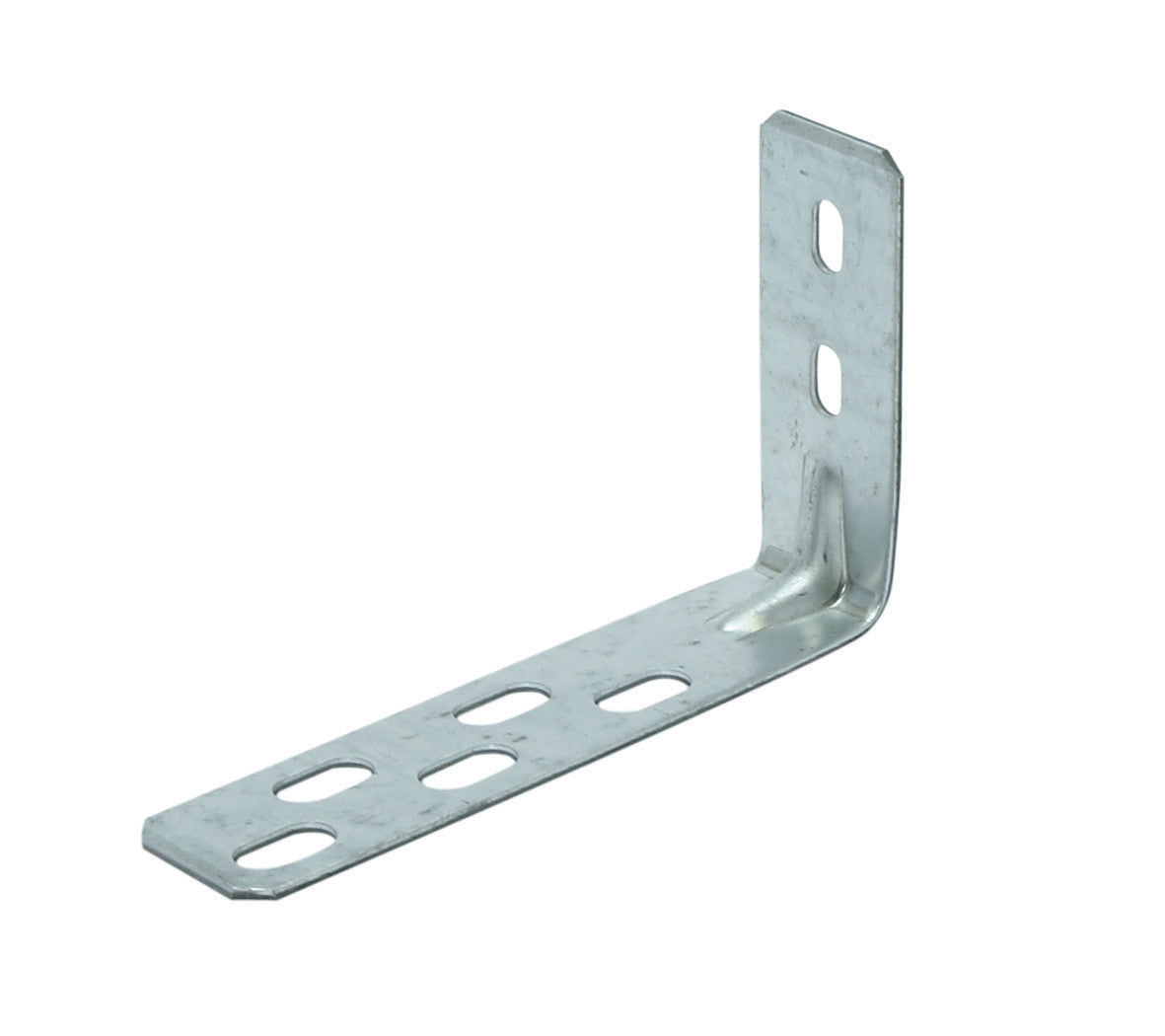

Frame anchor for large and heavy frames in aerated concrete walls

A frame anchor, also known as a corner anchor, is used to securely fasten large and heavy door or window frames in an aerated concrete wall. Here are the specifications of the frame anchor:

Specifications:

  • Type: Heavy
  • Length: 75/125mm
  • Width: 30mm
  • Thickness: 2mm
  • Material: Galvanized steel

Application:

  1. Place the first frame anchor on the first layer of aerated concrete blocks after the frame has been placed.
  2. Install 3 more frame anchors per side, for a total of 4 anchors per frame style.
  3. Attach the frame anchor to the frame with a chipboard screw and to the aerated concrete block with a nail.
  4. Because these anchors are of a heavier quality and therefore thicker, a recess must be made in the aerated concrete block to be able to process them.
  5. Drill out the recess with, for example, a chisel up to the width of the anchor.

The heavier quality and thickness of these anchors make them suitable for large and heavy window frames, allowing for a firm attachment.
